Moog – Protokraft develops electro-optical components and subsystems for network applications in harsh environments.
Network equipment designers have the benefits of reducing the size of printed circuit boards, reducing wiring requirements and most importantly – improving system link budgets.

The company MOOG-PROTOKRAFT is specialized in fiber optic transceivers incorporated directly into connectors type ARINC 600/404 / EN4165, D38999 … as well as in Rugged Ethernet Switch.



“Reliability of fiber optic communications in difficult environments”

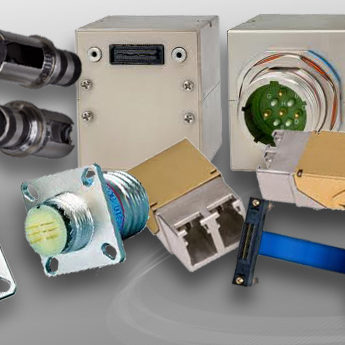

transceiver optique

PRODUCTS

FIBER OPTICAL TRANSCEIVERS

Mil-Dtl-38999 Fiber Optic Transceivers

Fiber optic link up to 20 km

Applications for RS-485, Fast / Gigabit Ethernet, Fiber Channel and sFPDP from DC to 3.125Gbps
RX signal detection (SD) or Signal loss (LOS) functions
Operating temperature -40 ° C to + 85 ° C
Impact, vibration and immersion resistance Mil-Std-810

Single Tx / Rx

STILETTO Optical TX & RX 10Gbps “Pluggable” Interface

Ethernet standard 10 Go Conforme – 10GBase-SR / SFI
Fiber optic length up to 300m (50 / 125µ 2000MHz * Km MMF – OM3
Maximum bit error rate < 1 x 10-12
Operating temperature -40 ° C to + 85 ° C
Duplex LC interface
Significant gain in size and weight compared to traditional SFP + transceivers



Rugged Ethernet Switch

Copper + fiber Ethernet switch – 28VDC

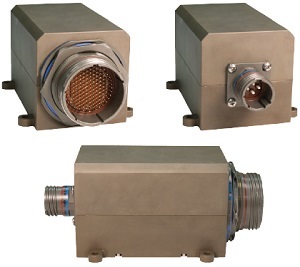

Viking 10+2 is an Ethernet Switch made up of 10 10/100 / 1000Base-T ports and 2 10GBase-SR ports
In a small footprint, the Viking offers 2 separate connectors D38999
The copper Ethernet interface is a D38999 / 24Jx35PN with ports
Ethernet 10/100 / 1000Base-T compatible with IEEE 802.3u-: 2005,
plus l’interface 28VDC (18-36 VDC).
The fiber Ethernet interface is a D38999 / 20xC4PN with 2 x 10GBase-SR for
a fiber optic link up to 300m.
Available in level 2 or non-manageable version.
Temperature range -40 ° C to + 85 ° C

Ethernet Media Converter

Mercury 28 VDC

This “Media converter” allows to transmit a copper Ethernet signal by optical fiber
It is supplied directly with 28V DC.
IEEE-802.3: 2005 Fast or Gigabit Ethernet compatible
Fiber optic length up to 2.0 Km
Operating temperature: -40 ° C to + 85 ° C
Shock, vibration and immersion resistant Mil-Std-810 and Mil-Std-1344

Video Media Converter

Falcon 28 VDC

This “Dual DVI fiber optic media converter” allows to transmit a DVI signal by optical fiber over long distances in a difficult environment.
It is supplied directly with 28 V DC.
Operating temperature: -40 to + 85 ° C
Optical fiber length up to 500m
Shock, vibration and immersion resistant Mil-Std-810 and Mil-Std-1344
MIL-T-29504 fiber optic interface connector
D38999 / Quadrax for DVI signals

Learn More

Interface adapters

Cobra

The Cobra is the ideal solution when it comes to transmitting a signal by optical fiber in an environment where it is not possible to use a cleaning kit.
The user disassembles only the connector D38999 size 11-35. The electrical-optical conversion being carried out in the body of the connector.

Application up to 3.2 Gbps
Fiber distances: up to 10.0 km
Operating temperature: -55 to + 85 ° C
Resistant to shock, vibration, EMI and ESD according to Mil-Std-810
