DATA ACQUISITION

DATA ACQUISITION

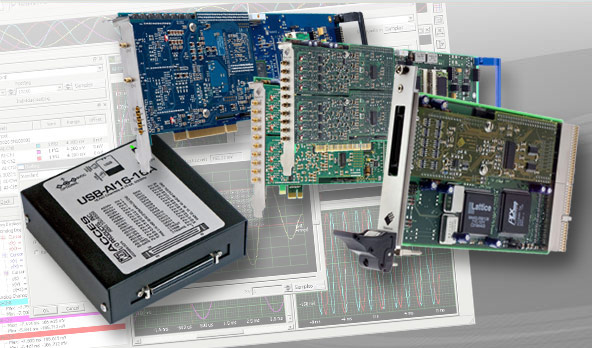

A complete range of data acquisition and generation systems available in different formats :PCI, PCIe, PXI, PXIe, Ethernet, USB, mPCIe.





PRODUCTS

Ethernet remote solution

The digitizerNETBOX is an alternative to a complete system housing one or more Spectrum measurement cards. The digitizerNETBOX instrument can simply be connected to any PC which is connected to the LAN. No PC has to be opened and no system hardware configuration is needed.
Available from 2 to 48 synchronous channels, each channel with its own amplification stage and its own A/D converter.

The design quality of SPECTRUM products allows:

  • Very low phaseshift between channel
  • Very low crosstalk between two adjacent channel
  • Direct comparison of acquisitions without interpolation

View more

Digital Waveform Acquisition Card

The new series of M4i.77xx digital data acquisition cards represents a major breakthrough in performance for test engineers who need to acquire high-speed digital data.







View more

High Speed Digitizer / Transient Recorder

The Digitizers (also known as ADC or DAQ cards or PC-Oscilloscope) cover medium and high sampling rates ranging from 1 MS/s up to 6.4 GS/s with a bandwidth in excess of 1 GHz. More than 100 different Digitizer products are available at Spectrum Instrumentation. The sophisticated synchronization technology (star-hub) of Spectrum Instrumentation allows to set-up systems with single channels as well as systems with hundreds of channels.



View more

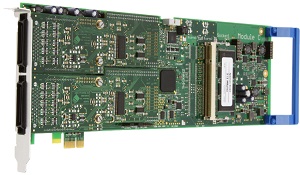

Digital Waveform Acquisition/Pattern Generators cards

The M2i.70xx series of fast digital I/O boards offers a resolution between 1 bit and 64 bit with a maximum sampling rate of 125 MS/s (60 MS/s). All I/O lines of the card can be programmed for either input or output direction. The on-board memory of up to 2 GByte can be used completely for recording or replaying digital data. The internal standard synchronisation bus allows synchronisation of several cards of the M2i series. Therefore the M2i.70xx board can be used in combination with analog boards.

Fast Digital Waveform Acquisition/Pattern Generator
8, 16 or 32 bit mode
Up to 125 MS/s at 32 bit
Inputs 3.3V and 5V TTL compatible
Up to 2 GByte on board memory

Digital I/O boards
Card Ref. Digital In Digital Out Samplerate Logic Level  Stand. Memory
M2i.7005         16          16     125 MS/s          TTL           512 Mo
M2i.7010         16          16     125 MS/s          TTL           512 Mo
M2i.7011         32          32     62.5/125 MS/s          TTL           512 Mo
M2i.7020         32          32      125 MS/s          TTL           512 Mo

www.spectrum-instrumentation.com

PCI, PCIe or mPCIe I/O Cards

Founded in 1987 in San Diego, California, ACCES I/O provides a broad range of analog, digital, and serial communication I/O cards. ACCES I/O products are available in PCI, PCIe, PCI-X, PCI Low Profile and Mini PCIe formats. All products come with a 30-day “no-risk” return policy and a three-year warranty.









View more

Arbitrary Waveform Generator Cards

The new M4i series of Arbitrary Waveform Generators set new standards in speed and accuracy. These cards offer one, two and four channels, each channel capable of transmitting arbitrary signals at rates up to 1.25 GS/s with a vertical resolution of 16 bits.









View more

E/S par liaison USB

ACCESIO offers a range of data acquisition and control systems via USB. These USB DAQ devices are ideal for a variety of applications requiring industrial monitoring, control and serial communications. USB is by far the most popular and compatible standard data interface for direct connection to a PC. Add the functionality you need to your application in hours, not days. Choose from over 100 different models and options (including extended temperature) including analog I/O, digital I/O, counters / timer and serial I/O configurations. Benefit from a simple and immediate connection to any PC or embedded system with a USB port.

En savoir plus

Ports RS232/422/485

ACCES IO offers communication cards for all common protocols that you can find on different industrial equipment (RS-232, RS-422 and RS-485), ranging from a single port to eight ports on a single card.

There are also optically isolated versions to ensure efficient data transmission over long distances, even in electrically noisy environments.

Learn More

Ethernet / LXI standard data acquisition unit.
Available in different version from 2 to 48 synchronous channels, each channel has its own amplification stage and its own A/D converter.

The design quality of SPECTRUM products allows:

Very low phase shift between channels
Very low crosstalk between two adjacent channels
Direct comparison of acquisitions without interpolation

En savoir plus
